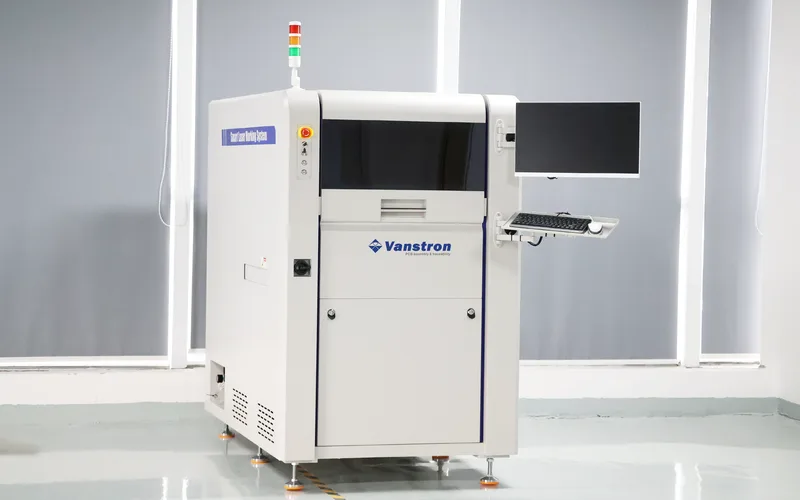

S-460 Series Inline Laser
High-precision inline laser marking machine with ±0.015mm accuracy, CO2/UV/fiber laser options, and integrated barcode verification camera.
Product Overview
The Vanstron S-460 Series Inline Laser Marking Machine delivers high-precision marking directly within the SMT production line. With ±0.015mm positioning accuracy, it creates permanent, high-contrast marks including 1D barcodes, 2D Data Matrix codes, serial numbers, and custom graphics on PCB surfaces and components.
The system supports three laser source options — CO2, UV, and fiber — to accommodate different substrate materials and marking requirements. The integrated barcode verification camera automatically reads and validates each mark immediately after application, ensuring 100% marking quality with closed-loop verification.
Capable of handling PCBs up to 500 × 460 mm, the S-460 Series integrates into SMT lines via SMEMA and IPC Hermes 9852 interfaces, supporting automated recipe changeover and full board traceability in Industry 4.0 production environments.
Key Features
- ±0.015mm marking positioning accuracy
- Three laser source options: CO2, UV, and fiber
- Integrated barcode verification camera for closed-loop quality
- Maximum PCB size: 500 × 460 mm
- 1D barcode, 2D Data Matrix, serial numbers, and graphics marking
- Automatic recipe changeover via IPC Hermes 9852
- Vision-guided alignment for precise mark placement
- SMEMA and IPC Hermes 9852 communication interfaces
- Touch-screen HMI with recipe management
- Class 1 laser safety enclosure
Technical Specifications
| Parameter | Value |
|---|---|
| Positioning Accuracy | ±0.015 mm |
| Laser Options | CO2, UV, Fiber |
| Max PCB Size | 500 × 460 mm |
| Verification | Integrated barcode camera |
| Weight | 920 kg |
| Communication | SMEMA, IPC Hermes 9852 |
| Laser Safety | Class 1 |
| Industry Standard | Industry 4.0 Ready |
